What are the common processing methods for sheet metal?

Sheet Metal Cutting: Laser, Waterjet, and Shearing Techniques

Laser Cutting in Sheet Metal Fabrication

Laser cutting works by directing intense light beams onto materials, achieving around 0.1 millimeter accuracy when working with steel, aluminum, and copper sheets that are as thick as 25 millimeters. Since this method doesn't actually touch the material during operation, there's much less warping or distortion than other techniques, which makes it great for detailed parts such as electrical boxes and those complicated ductwork pieces used in heating systems. Today's fiber laser technology can slice through 3mm thick stainless steel at speeds approaching 30 meters every minute, all while consuming about 40 percent less power than older CO2 laser systems did back in the day. Many manufacturers have switched over because these savings really add up over time.

Waterjet Cutting for Precision and Material Versatility

Waterjet systems with abrasives can slice right through metals as thick as 150 mm without creating any thermal stress, which means they don't damage heat sensitive materials such as titanium or tempered aluminum. When running these machines, operators need to tweak the amount of garnet abrasive used usually somewhere between 0.8 and 1.2 pounds per minute depending on what needs cutting. Getting this ratio right helps find that sweet spot between how fast something gets cut versus how clean the edges end up looking. The really cool thing about dual head waterjets is their versatility. They handle everything from tough aerospace grade alloys to soft rubber gaskets all within one setup, and still manage consistent results down to about quarter of a millimeter across multiple cuts.

Shearing as a High-Speed Sheet Metal Cutting Method

Hydraulic shears deliver 500+ cuts/hour on 16-gauge mild steel with 2 kN blade force. This cost-effective method produces straight edges within ±0.5 mm tolerance, suitable for bulk production of cabinet panels and appliance chassis. Rotary shears handle coils up to 2,000 mm wide, reducing material waste to 3% through optimized nesting patterns.

Blanking and Fine Blanking for Accurate Part Separation

Fine blanking presses apply 15-ton counterpressure during stamping to achieve IT9–IT10 tolerances in automotive bushings and lock plates. Compared to standard blanking, this method reduces burr height by 90% and enables perpendicularity within 0.05 mm/m. Progressive die systems combine 5–10 blanking stages to output 200+ connectors per minute.

Comparative Efficiency of Sheet Metal Cutting Techniques

Laser systems dominate prototyping with 85% first-pass accuracy, while shearing delivers 3x faster throughput for bulk orders. Waterjet maintains a 40% cost advantage over plasma when cutting multi-material stacks.

Metal Stamping and Punching: High-Volume Production Solutions

CNC Punching for Customizable Hole Patterns in Sheet Metal

CNC punching excels in creating intricate hole patterns across steel, aluminum, and stainless steel sheets. This automated process achieves tolerances within ±0.15 mm while maintaining speeds of 800–1,200 strokes per hour. Its reprogrammable nature allows rapid adjustments for mixed-material batches, reducing setup time by 40–60% compared to traditional methods.

Piercing and Perforating to Enhance Functionality and Design

When it comes to making clean holes for bolts or letting wires through in appliances and industrial gear, precision piercing does the job right. Perforating isn't just about looks these days either. Take those hex shaped vents we see on server racks, or the tiny holes that help quiet down noise in heating and cooling systems. The tools used for this work have come a long way too. Coatings made from stuff like titanium aluminum nitride can triple how long punches last when dealing with tough materials such as galvanized steel. That means fewer replacements and better bottom line results for manufacturers working with abrasive metals.

Slotting and Notching in Complex Sheet Metal Components

T-shaped slots for sliding panel adjustments and U-shaped notches for weld clearance are critical in automotive chassis and machinery frames. Multi-axis CNC systems now combine slotting with edge-forming operations in a single cycle, eliminating secondary processes for 85% of components under 3 mm thickness.

Industrial Applications of Metal Stamping in Automotive and Electronics

A single progressive die stamping line produces 2.3 million automotive brackets monthly with 99.95% dimensional consistency. In electronics, high-speed stamping forms 0.4 mm-thick connector pins at 1,800 units/minute while maintaining surface roughness below Ra 0.8 μm for reliable signal transmission.

Balancing Tool Wear and Production Speed in Stamping Operations

Hardened tool steels with cryogenic treatment sustain 1.2 million cycles in stainless steel stamping before needing resharpening. Real-time monitoring systems track punch force deviations beyond 8–12%, automatically triggering maintenance alerts to prevent defective batches in continuous production environments.

Bending and Forming: Achieving Precision with Press Brakes

Modern sheet metal fabrication relies heavily on press brakes to create precise bends in components ranging from simple brackets to complex aerospace parts. These machines achieve angular accuracy within ±0.5° using CNC-controlled backgauges and real-time pressure adjustments, making them indispensable for industries requiring tight tolerances.

Press Brake Usage for Accurate Metal Bending Angles

Operators combine hydraulic force with V-dies and punches to bend sheet metal at predetermined angles. Advanced models automatically compensate for material springback using strain gauge feedback systems, reducing trial-and-error adjustments by up to 80% compared to manual methods.

Air Bending vs. Bottoming in Sheet Metal Forming

Air bending (partial contact with die) allows rapid angle adjustments through punch displacement control, while bottoming (full contact) ensures ±0.1° repeatability for high-volume runs. Bottoming requires 30–40% more tonnage but eliminates springback, making it ideal for hardened steels.

Design Considerations for Bend Radii and Springback

Maintaining bend radii ≥1.5× material thickness prevents cracking in aluminum alloys. Springback increases by 15–20% when working with high-strength steels versus mild steel, requiring overbending strategies programmed directly into CNC systems.

Case Study: Aerospace Component Manufacturing Using CNC Bending

A leading aerospace manufacturer reduced wing rib assembly errors by 63% after implementing CNC press brakes with laser angle measurement. The system’s adaptive algorithms automatically corrected deviations caused by material thickness variations (±0.05 mm tolerance), achieving first-pass yield rates of 98.7% across 12,000+ bent components.

This precision-forming capability makes press brakes a cornerstone technology in sheet metal workflows, particularly where dimensional consistency directly impacts product performance.

Welding and Joining Techniques for Sheet Metal Assemblies

MIG and TIG Welding in Thin Sheet Metal Applications

MIG welding works by feeding a consumable wire electrode through the gun, which creates strong and fast joints commonly used in automotive body panels and parts of HVAC systems. The process can deposit metal at impressive speeds, sometimes reaching around 25 pounds per hour. For more delicate jobs like working on electronics enclosures, TIG welding is preferred. This method uses a tungsten electrode that doesn't get consumed during the process. TIG welding delivers much lower heat input typically below 1 kJ/mm, which helps prevent warping when working with thin materials. This makes it ideal for stainless steel and aluminum sheets that are less than 3 millimeters thick where precision matters most.

Spot Welding for Rapid Assembly in Mass Production

Resistance spot welding generates 5–10 kN electrode force to fuse overlapping sheet metal layers in under 0.5 seconds per joint, making it ideal for automotive body-in-white assemblies. A single robotic workstation can produce 4,800 spot welds/hour, reducing labor costs by 40% compared to manual arc welding in appliance manufacturing.

Laser Welding Advancements for Minimal Distortion

Fiber laser systems with 2–6 kW power outputs achieve 0.1–0.3 mm weld widths in battery trays and medical device housings, limiting heat-affected zones to 15% of conventional methods. Hybrid laser-arc techniques combine 1 μm wavelength beams with MIG torches to bridge 0.8 mm gaps in galvanized steel roof panels, reducing post-weld straightening by 70%.

Trend: Automation Integration in Sheet Metal Welding Lines

Collaborative robots equipped with vision-guided seam tracking now handle 83% of repetitive welding tasks in chassis production lines, cutting repositioning downtime by 55%. A 2023 SME study documented 68% faster cycle times in automated welding cells using digital twin simulations for parameter optimization.

Post-Processing and Integrated Workflows in Modern Fabrication

Deburring and edge finishing after sheet metal cutting

After cutting, deburring removes micro-imperfections averaging 0.1–0.3 mm in height. Automated abrasive systems now handle 95% of edge-finishing tasks in high-volume production, reducing manual labor costs by up to 40% compared to traditional filing methods.

Surface treatments like powder coating and anodizing

Powder coating provides 3–5× greater corrosion resistance than liquid paints in sheet metal applications, while anodizing creates oxide layers up to 25 μm thick for aluminum components. These treatments typically add $0.50–$2.50 per square foot to fabrication costs but extend product lifespans by 8–12 years in outdoor installations.

Balancing cost and quality in sheet metal post-processing

Implementing staged quality checkpoints reduces rework rates from 12% to 3% in medium-batch production. Smart inspection systems using AI-assisted visual recognition now achieve 99.8% defect detection accuracy at 15% lower operational costs than manual inspections.

Integrating laser cutting, punching, and bending in automated cells

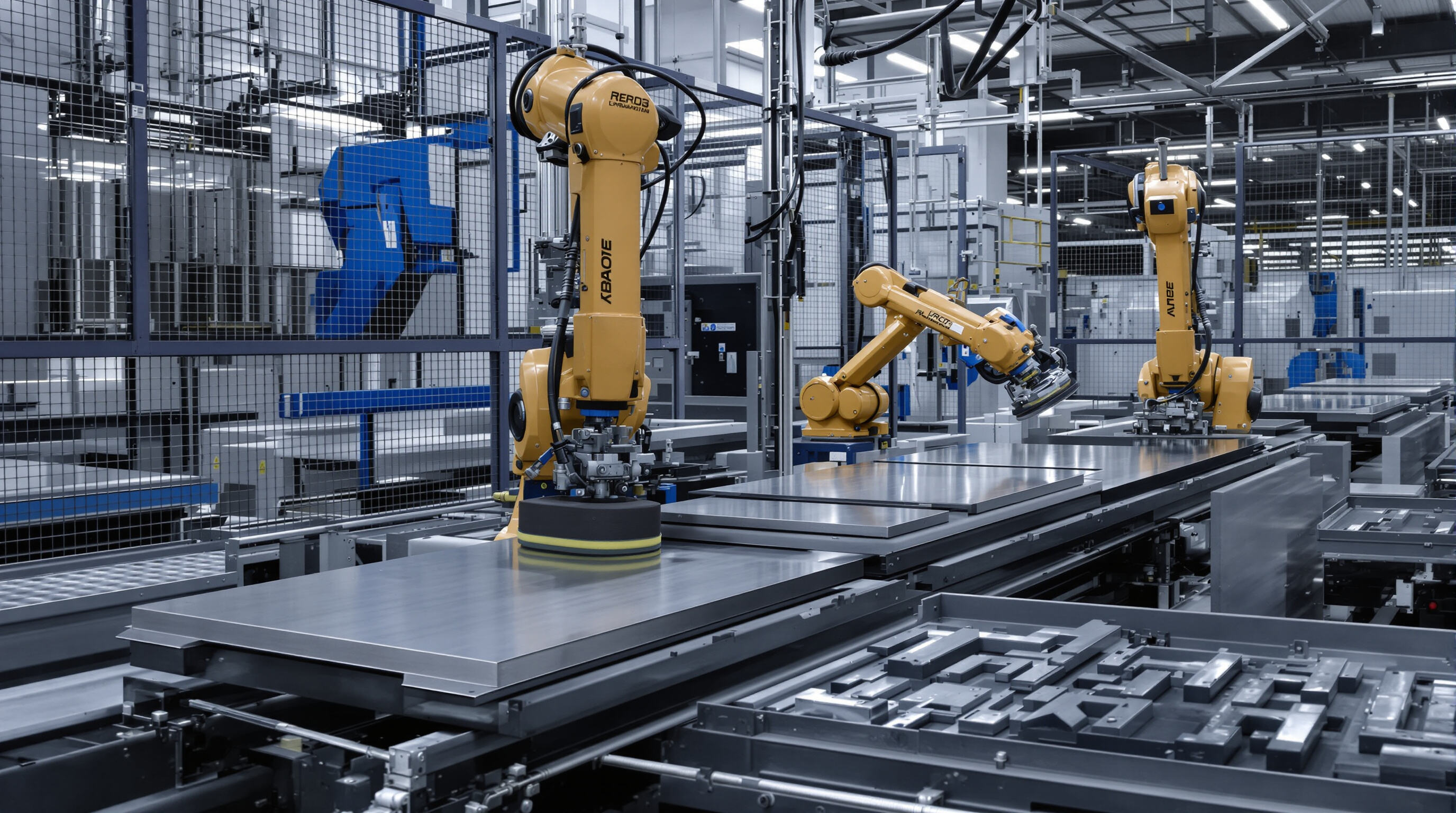

Modern facilities combine these processes in robotic workcells that achieve 98% first-pass yield through synchronized toolpath programming. A 2024 automation study found such integration reduces material handling errors by 68% compared to discrete workstation layouts.

Data point: 68% increase in throughput with automated material handling (Source: SME, 2023)

Automated guided vehicles (AGVs) and robotic transfer systems now achieve 23.5 cycles/hour in stamping-pressing lines, up from 14 cycles/hour in manual operations. This throughput gain comes with a 90% reduction in workpiece surface scratches during transfers.

Digital twin implementation for process optimization

Real-time process simulation models reduce trial runs by 85% in complex sheet metal assemblies. When tested on aerospace brackets, digital twins achieved 0.05 mm bending angle accuracy across 15,000 production cycles—four times tighter than conventional setup methods.

FAQs: Sheet Metal Cutting and Fabrication

What is laser cutting in sheet metal fabrication?

Laser cutting involves using a highly focused light beam to cut through sheet metal with precision, achieving fine detail and reducing material distortion.

Why is waterjet cutting preferred for heat-sensitive materials?

Waterjet cutting does not introduce thermal stress, making it ideal for cutting materials sensitive to heat, such as titanium and tempered aluminum.

What are the advantages of using CNC punching?

CNC punching allows for customizable hole patterns, achieves tight tolerances, and reduces setup time in sheet metal fabrication processes.

How does automated deburring impact production?

Automated deburring significantly reduces manual labor costs and enhances the efficiency of edge finishing tasks in high-volume production.
